C600 Underground Crawler Mounted
The C600 Underground is a high-performance diamond core drilling rig designed for demanding underground mineral exploration operations. Combining powerful drilling capability with a compact and mobile configuration, it provides an efficient solution for deep and challenging underground drilling applications.
Its crawler-mounted design allows the rig to move efficiently between drilling locations, while its robust mast and hydraulic drilling system provide the stability, control and performance required for professional wireline core drilling operations.
Designed for productivity, reliability and operational flexibility, the C600 Underground brings the drilling capacity of the C600 platform into underground mining environments.
Title | Description |
|---|---|
Main application area | Underground |
Drilling Method | Wire-Line |
Drilling Diameters | BQ & NQ & HQ |
Max Drilling Depth Capacity* | BQWL 1000 M - NQWL 750 M - HQWL 600 M |
Spindle Inner Diameter | 101 mm |
Maximum Torque | 1 530 Nm |
Speed Range | 100 – 1200 \ 1400 rpm |
Chuck Axial Holding Force | 150 kN |
Maximum Rod Size | 89 mm |
Holding Force | 45 kN |
Axial Holding Force TC Inserts | 90 kN |
Feed Force | 89 kN |
Pull Force | 89 kN |
Rod Running – Out | 0,8 m/s |
Rod Running – in | 0,8 m/s |
Feed Stroke | 1.800 mm / 3.600 mm |
Diesel Engine | 119-130 kW / 2.200 rpm |
Fuel Oil Tank | 100 lt |
COOLER Made in Italy | WATER COLLECTOR |
Propelled Crawler | |
|---|---|
Diesel Engine (Propel Operation) | 22 kW, 2300 rpm, 33 HP |
Electric Motor (Drill Operation) | 55 kW, 3 Phase, 380 V, 50 Hz |
Propelled Crawler | |
|---|---|
Distance between crawler | 1200 mm |
Max Climbing capacity | 20° |
Undercarriage Max. Speed | 2,5 kph |
Undercarriage Track Width | 300 mm |
135 Lt/Min Mud Pump Specifications | |
|---|---|
Configuration | Horizontal Triplex Pump |
Number of Pistons | 3 |
Stroke Lenght | 69.9m m (2.75 in) |
Piston Laod | 2.69 kg (5.93lb) |
Ratio | 3.6:1 |
Lube Oil Capacity | 5L (1.3 gallon) |
Lube Oil Type | SAE 30 |
Suction Size | 2″ NPT |
Discharge Size | 1-1/4″ NPT |
Valve Type | Ball Valves |
Pump Weight | 209 kg (460lbs) |
Speed Rating | 625 rpm |

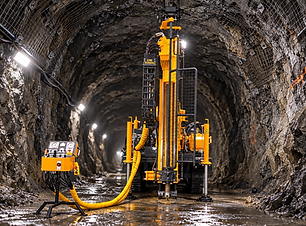

Compact Power for Underground Exploration
Designed for underground mineral exploration, the C600 combines an electric-powered drilling system with an independent diesel-driven crawler system. Its compact dimensions, high mobility and robust construction provide an efficient solution for demanding underground drilling operations.

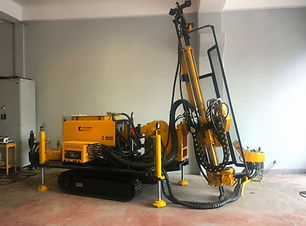

C600 Underground – Crawler Mounted
• Crawler Mounted
• Wireline Core Drilling
• High Drilling Capacity
• Compact Underground Design
• High Mobility

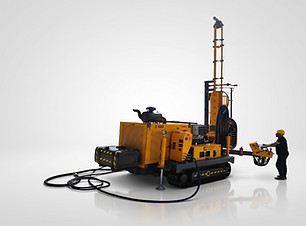

Compact Mobility.
With a width of only 2.0 meters and a height of 2.30 meters, the C600 is designed to move efficiently through confined underground spaces. Its independent diesel-powered crawler system provides easy mobility between drilling locations.
