C400 Underground Skid Frame
The C400 Underground Skid Mounted is specifically designed for diamond core drilling operations in confined underground mining environments.
Mounted on a robust skid frame, the system consists of three main modular sections, allowing easier transportation, handling and installation in underground areas where access and working space are limited.
Its compact modular configuration provides the flexibility required for challenging underground exploration while maintaining the drilling performance, stability and reliability of the C400 platform.
Title | Description |
|---|---|
Drilling Capacity with BQWL (with 3.0m Drill Rod...) | 600 m |
Drilling Capacity with NQWL (with 3.0m Drill Rod...) | 400 m |
Drilling Capacity with HQWL (with1.5m Drill Rod...) | 150 m |
Technical Information | Description |
|---|---|
Max Rotation Torque | 114mm |
Max Rotation Speed | 900 rpm |
Max Full Force | 64 kN |
Max Feed Force | 64 kN |
Feed Speed (low/high) | 0,5 – 1 m/s |
Distance Beetween Rod Holder - Rotation Unit,Max | 1800 mm |
Feed Length | 3000 mm |
Feed Length Total | 3100 mm |
Undercarriage Propelled System | TRACKONE, Gearbox+hydromotor with brake |
Rotation | REXROTH, Variab. Disp. Piston Type |
Service Pump | SALAMI OR GALTECH, Gear Type |
Main Pump | DANFOSS, Variable Disp. Piston Type |
135 Lt/Min Mud Pump Specifications | |
|---|---|
Configuration | Horizontal Triplex Pump |
Number of Pistons | 3 |
Stroke Lenght | 69.9m m (2.75 in) |
Piston Laod | 2.69 kg (5.93lb) |
Ratio | 3.6:1 |
Lube Oil Capacity | 5L (1.3 gallon) |
Lube Oil Type | SAE 30 |
Suction Size | 2″ NPT |
Discharge Size | 1-1/4″ NPT |
Valve Type | Ball Valves |
Pump Weight | 209 kg (460lbs) |
Speed Rating | 625 rpm |
Compact. Modular. Underground Ready.

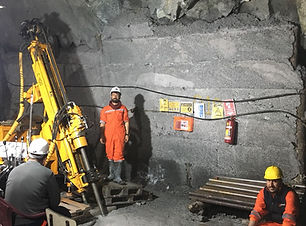

The three-piece modular design allows the C400 to be transported and positioned in underground areas where conventional crawler-mounted drilling rigs may face access limitations.
Underground Configuration
• Skid Mounted
• Three-Piece Modular Design
• Electric Powered
• Wireline Core Drilling
• Compact Dimensions
• Confined Space Access
• Easy Underground Transportation
.jpg)
Wireline Performance Underground
Designed for professional wireline core drilling, the C400 combines compact underground accessibility with reliable drilling performance for mineral exploration applications.
