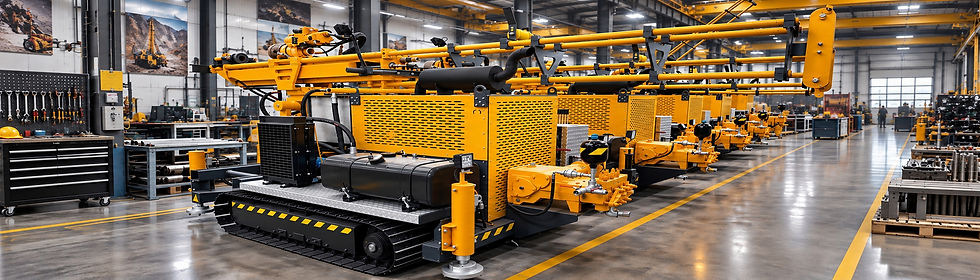

C400 Surface Crawler Mounted
The C400 Surface is a compact and versatile diamond core drilling rig designed for surface mineral exploration. Both the drilling power unit and crawler system are powered by a diesel engine, providing an independent and highly mobile drilling solution for remote and demanding exploration sites.
Its crawler-mounted configuration enables easy movement between drilling locations without requiring additional transportation equipment for short-distance relocation. The compact design provides excellent maneuverability while maintaining the stability and performance required for professional wireline core drilling operations.
Built for reliability, mobility and operational efficiency, the C400 Surface combines proven drilling performance with a self-contained diesel-powered platform.
Drilling Capacity | |
|---|---|
Drilling Capacity with BQWL (with 3.0m Drill Rod...) | 600 m |
Drilling Capacity with NQWL (with 3.0m Drill Rod...) | 400 m |
Drilling Capacity with HQWL (with1.5m Drill Rod...) | 150 m |
Technical Information | Description |
|---|---|
Max Rotation Torque | 114mm |
Max Rotation Speed | 900 rpm |
Max Full Force | 64 kN |
Max Feed Force | 64 kN |
Feed Speed (low/high) | 0,5 – 1 m/s |
Distance Beetween Rod Holder - Rotation Unit,Max | 1800 mm |
Feed Length | 3000 mm |
Feed Length Total | 3100 mm |
Undercarriage Propelled System | TRACKONE, Gearbox+hydromotor with brake |
Rotation | REXROTH, Variab. Disp. Piston Type |
Service Pump | SALAMI OR GALTECH, Gear Type |
Main Pump | DANFOSS, Variable Disp. Piston Type |
Crawler System | |
|---|---|
Distance between crawler | 1200 mm |
Max Climbing capacity | 20° |
Undercarriage Max. Speed | 2,5 kph |
Undercarriage Track Width | 300 mm |
135 Lt/Min Mud Pump Specifications | |
|---|---|
Configuration | Horizontal Triplex Pump |
Number of Pistons | 3 |
Stroke Lenght | 69.9m m (2.75 in) |
Piston Laod | 2.69 kg (5.93lb) |
Ratio | 3.6:1 |
Lube Oil Capacity | 5L (1.3 gallon) |
Lube Oil Type | SAE 30 |
Suction Size | 2″ NPT |
Discharge Size | 1-1/4″ NPT |
Valve Type | Ball Valves |
Pump Weight | 209 kg (460lbs) |
Speed Rating | 625 rpm |
Wireline Drilling Performance
Engineered for professional wireline core drilling, the C400 provides controlled rotation, feed performance and reliable operation across demanding exploration conditions.
Surface Configuration
• Diesel Powered
• Crawler Mounted
• Wireline Core Drilling
• Compact Design
• High Mobility
• Surface Exploration
Built for Surface Mobility
The compact C400 platform combines easy maneuverability with the performance required for professional wireline core drilling operations.
