80 Lt/min Triplex Mud Pump
Reliable Flow. Continuous Performance.
The 80 Lt/min Triplex Mud Pump is designed to provide reliable and continuous drilling fluid circulation for diamond core drilling operations. Its robust triplex design delivers stable flow and consistent performance under demanding field conditions.
Multiple Drive Configurations
Available in different configurations to meet various operational requirements:
-
Diesel Engine & Gearbox
-
Diesel Engine & Pulley
-
Electric Motor & Gearbox
-
Electric Motor & Pulley
-

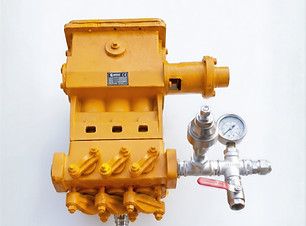

Pump Head Only
Title | Description |
|---|---|
Configuration | Horizontal Triplex Pump |
Number of Pistons | 3 |
Stroke Lenght | 57.2 mm (2.25in) |
Piston Load | 1.27 kg (2.8 lb) |
Ratio | 3.6:1 |
Lube Oil Capacity | 2.15 L |
Lube Oil Type | SAE 30 |
Suction Size | 1-1/2″ NPT |
Discharge Size | 1″ NPT |
Valve Type | Ball Valves |
Pump Weight | 95 kg (210lbs) |
Speed Rating | 625 rpm |

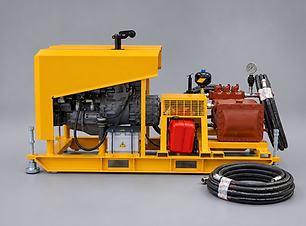

Diesel Engine
&
Gearbox
Reliable diesel-powered configuration with direct gearbox transmission for demanding field operations.
Diesel Engine
&
Pulley
Robust diesel-powered system with pulley transmission for simple and efficient operation.
.png)
Electric Motor
&
Gearbox
Efficient electric-powered configuration with gearbox transmission for stable and reliable performance.
.png)
Electric Motor
&
Pulley
Simple electric-powered system with pulley transmission for efficient and economical operation.
Built for Diamond Core Drilling
Engineered specifically for mineral exploration applications, the pump provides the fluid circulation required for efficient cooling, flushing and removal of drill cuttings during wireline core drilling operations.
Reliable Flow. Continuous Performance.
The 80 Lt/min Triplex Mud Pump is designed to provide reliable and continuous drilling fluid circulation for diamond core drilling operations. Its robust triplex design delivers stable flow and consistent performance under demanding field conditions.

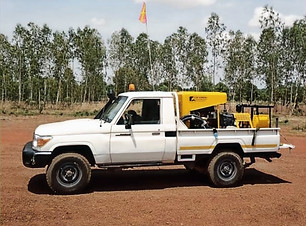

Compact. Robust. Reliable.
Designed for both surface and underground drilling operations, its compact construction allows easy integration with drilling rigs or use as an independent auxiliary mud pump.
