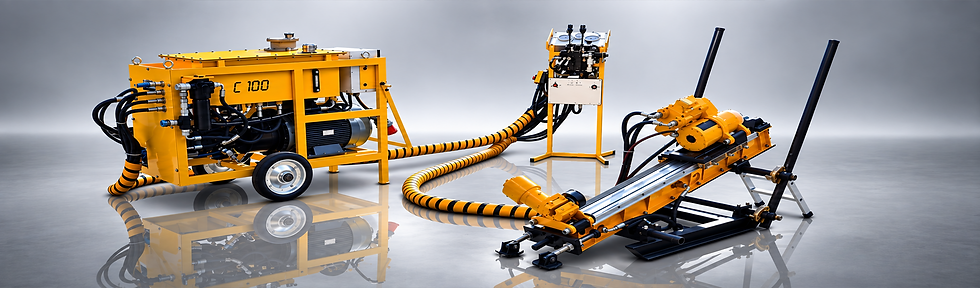

C100 Core Drilling Rig Skid Frame

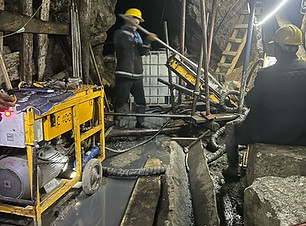

The C100 core drilling rig, is rugged, compact, and quick to set up thanks to its lightweight and efficient design. It is ideal for drilling short holes in confined spaces or areas with low ceiling heights.
The C100 is well suited for both mineral exploration and ground engineering applications, delivering reliable performance across different working conditions.
The rig features mechanized rod handling, including rod making and breaking, along with a synchronized chuck and rod holder to ensure fast and safe operations. It is also equipped with a hinge-mounted rod holder and rotation unit, providing flexibility and ease of use in special applications such as casing installation.
The C100 is electrically powered and equipped with a Direct Hydraulic Control (DHC) system. Two variable hydraulic pumps ensure that all key functions operate smoothly, efficiently, and with precise control.
Rotation Unit | |
|---|---|
Main Application Area | Underground |
Drilling Method | Conventional |
Drilling Diameters | A |
Spindle Inner Diameter | 50 mm (1.97 in) |
Chuck axial holding force | 28 kN (6295 lb) |
Max. Rotation Speed: | 2200 rpm |
Max. Torque | 250 Nm (184 ft lbf) |
Type | Hydraulic Closed, Spring Open |
Electrical Power Unit | Metric | US |
|---|---|---|
Engine | 22 kW | 22 HP |
RPM | 1500 | 1500 |
Primary Pump | 50 l/min – 210 bar | 13.2 gal/min – 3050 psi |
Secondary Pump | 5 l/min – 210 bar | 1.32 gal/min – 3050 psi |
Hydraulic Oil Cooling | Water |
Feed Frame 850 mm | Metric | US |
|---|---|---|
Max. Feed Speed | 0.8 m/s | 2.6 fps |
Pull Force | 15 kN | 3372 lbf |
Thrust Force | 20 kN | 4500 lbf |
Feed Stroke | 850 mm | 33.5 in |
Rod Holder | Metric | US |
|---|---|---|
Holding Force | 25 kN | 5620 lbf |
Max. Opening | 52 kN | 2.05 lbf |
Type | Hydraulically open, disc spring close |
Mud Pump Specifications | |
|---|---|
Configuration | Horizontal Triplex Pump |
Number of Pistons | 3 |
Piston Load | 1.27 kg (2.8 lb) |
Stroke Lenght | 57.2 mm (2.25in) |
Ratio | 3.6:1 |
Lube Oil Capacity | 2.15 L |
Lube Oil Type | SAE 30 |
Suction Size | 1-1/2″ NPT |
Discharge Size | 1″ NPT |
Valve Type | Ball Valves |
Pump Weight | 95 kg (210lbs) |
Speed Rating | 625 rpm |
Valve Type | Ball Valves |
Pump Weight | 95 kg (210lbs) |
Speed Rating | 625 rpm |
Rod holder & Rotation unit
Hinge-mounted rod holder opens hydraulically and closes mechanically with a spring.
The hydraulic chuck on the rotation unit is sychronized with the rod holder.
Power Unit
22 kW power unit featuring two variable flow hydraulic pumps mounted in tandem. The unit is fitted with wheels for easy transportation
Feed Frame
The feed has a fast rod running speed (1m/sec) for increased productivity.
