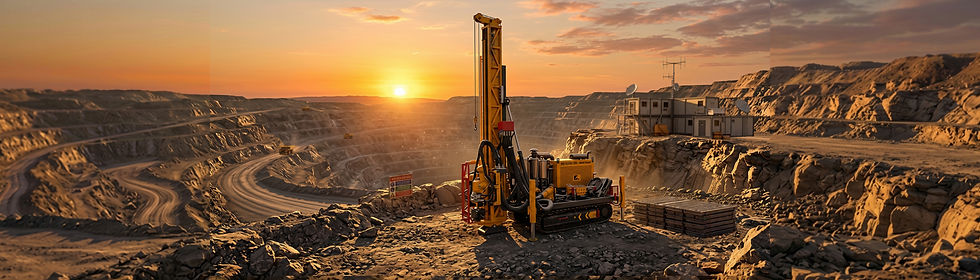

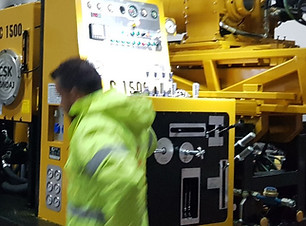

C1500 Surface Crawler Mounted
The C1500 is a high-capacity diamond core drilling rig engineered for deep and demanding mineral exploration projects. Combining powerful drilling performance, robust construction and crawler-mounted mobility, it is designed to deliver reliable and productive operation under challenging field conditions.
Designed for professional wireline core drilling from BQ to PQ sizes, the C1500 provides the power, control and stability required for deep-hole exploration while maintaining excellent mobility between drilling locations.
Title | |
|---|---|
Main Application Area | Surface Exploration |
Power Unit | CUMMINS QSB6.7 |
Drilling Method | Wire-Line |
Primary Pump | Axial piston, variable displacement load sensing, pressure compensated with low pressure standby. |
Drilling Diameters | BQ 2900 M - NQ 2500 M - HQ 1500 M |
Max Flow | 190 L/m |
Max Pressure (factory setting) | 28 Mpa |
Max Pressure (factory setting) | 20 Mpa |
Max Flow | 65 L/m |
Secondary Pump | Axial piston, variable displacement load sensing, pressure compensated with low pressure standby. |
Max Pressure (factory setting) | 18 Mpa |
Rotation Motor | Rexroth hydraulic motor- variable/reversible |
Feed Stroke | 3.35 m |
Hydraulic Tank Capacity | 400 L |
Hydraulic PQ Chuck | Chuck with gas spring Hydraulically opened, nitrogen gas spring closed Axial holding capacity of 222 400 N (50,000 Ibf) |
Max Thrust Capacity | 108.4 kN |
Head Opener | 02:01 |
Max Pull Capacity | 213.7 kN |
Rotations | 1st 6.27 : 1 - 2nd 3.12 : 1 - 3rd :1.75 : 1 |
Torque & RPM Ratings | 1st Gear 122-199 rpm - 2nd Gear 246-400 rpm - 3rd Geat439-714 rpm |
Power (max.) at 2200 RPM | 220 kW |
Drilling Angle | 45 Degrees off horizontal to 90 degrees vertical down |
Main Line Hoist | two speed motor |
Max Flow | 90 L/m |
Fuel Tank Capacity | 400 L |
Crawler System | |
|---|---|
Distance between crawler | 1200 mm |
Max Climbing capacity | 20° |
Undercarriage Max. Speed | 2,5 kph |
Undercarriage Track Width | 300 mm |
135 Lt/Min Mud Pump Specifications | |
|---|---|
Configuration | Horizontal Triplex Pump |
Number of Pistons | 3 |
Stroke Lenght | 69.9m m (2.75 in) |
Piston Laod | 2.69 kg (5.93lb) |
Ratio | 3.6:1 |
Lube Oil Capacity | 5L (1.3 gallon) |
Lube Oil Type | SAE 30 |
Suction Size | 2″ NPT |
Discharge Size | 1-1/4″ NPT |
Valve Type | Ball Valves |
Pump Weight | 209 kg (460lbs) |
Speed Rating | 625 rpm |
_edited_edited_edited_edited.jpg)
Integrated 135 L/min Mud Pump
The C1500 features an integrated 135 L/min triplex mud pump, providing a compact and efficient solution for drilling fluid circulation.
Integrating the mud pump directly into the drilling platform reduces the need for additional external equipment and simplifies transportation, setup and operation at the drilling site.
C1500 Surface– Crawler Mounted
• Diesel Powered
• Crawler Mounted
• BQ–PQ Wireline Drilling
• High Drilling Capacity
• Integrated 135 L/min Mud Pump
• Deep-Hole Capability
• High Mobility
• Heavy-Duty Construction
Built for Wireline Exploration
Engineered for professional BQ, NQ, HQ and PQ wireline core drilling, the C1500 provides the flexibility required for a wide range of mineral exploration programs—from standard exploration holes to demanding deep drilling applications.
